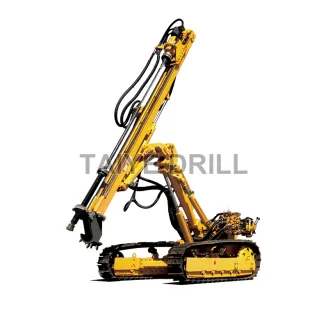

Drilling Rig Parts can cost from less than 20 USD for a seal to more than 80,000 USD for a complete rotary head. Rotary drilling equipment uses many parts, and each part has a different role, material, and service life. The final price depends on the machine model, part size, brand, production method, and order quantity.
A hydraulic system part may cost more because it must control high pressure and flow. A basic filter or hose usually costs less than a hydraulic pump or control valve.
Drill string components also affect the total operating budget because they face impact, torque, vibration, and abrasive soil every day.
Buyers must also consider freight, import tax, installation, downtime, and warranty support. A low purchase price may become expensive if the part fails after a short service period.
The right drilling rig spare parts should match the original technical data. They should also pass dimensional, material, pressure, and performance inspections.
Use this guide to compare replacement parts for drilling rigs, estimate your budget, and reduce the risk of buying parts that do not fit.
Most Drilling Rig Parts cost between 20 USD and 80,000 USD. Small seals, filters, and hoses often cost 20 to 500 USD. Drill bits and hydraulic valves usually cost 300 to 8,000 USD. Hydraulic pumps, mud pumps, rotary heads, and complete undercarriage assemblies can cost 3,000 to 80,000 USD. The correct price depends on part type, machine model, material, pressure rating, quantity, delivery terms, and warranty.
The following prices are budget ranges for common replacement parts. They are not fixed quotations. A manufacturer may offer a different price based on specifications, brand, production volume, and shipping location.
| Part | Typical Price Range | Common Service or Size Factors | Typical Lead Time |
|---|---|---|---|
| O rings and seals | 20 to 250 USD | Material, diameter, temperature, and pressure | 3 to 15 days |
| Hydraulic hoses | 50 to 600 USD | Length, inner diameter, pressure rating, and fittings | 5 to 20 days |
| Air, oil, and fuel filters | 30 to 400 USD | Filter media, flow rate, and micron rating | 3 to 15 days |
| Drill rods | 150 to 1,500 USD each | Length, thread type, steel grade, and wall thickness | 10 to 45 days |
| Rock or DTH drill bits | 300 to 5,000 USD | Diameter, button material, face design, and rock hardness | 10 to 40 days |
| Hydraulic control valves | 400 to 4,000 USD | Flow rate, pressure, port size, and control method | 15 to 60 days |
| Hydraulic pumps | 1,500 to 12,000 USD | Displacement, rated pressure, speed, and drive type | 20 to 75 days |
| Mud pumps | 3,000 to 30,000 USD | Flow, pressure, liner size, and stroke rate | 30 to 90 days |
| Air compressors | 4,000 to 35,000 USD | Air flow, working pressure, motor power, and cooling method | 30 to 90 days |
| Rotary heads | 8,000 to 80,000 USD | Torque, rotation speed, gearbox ratio, and mounting size | 45 to 120 days |
| Crawler undercarriage assemblies | 5,000 to 40,000 USD | Track width, frame length, load capacity, and travel speed | 30 to 100 days |
Two parts may look similar but have different internal designs. For example, a hydraulic pump rated at 250 bar may cost more than one rated at 160 bar. A rotary head that produces 80 kilonewton meters of torque normally costs more than a 30 kilonewton meter unit.
Material also changes the price. Drill rods made from alloy steel need controlled heat treatment. Drill bits with tungsten carbide buttons cost more than low-grade steel bits, but they may last longer in hard rock.
Compatibility is the first cost factor. Check the rig model, production year, serial number, mounting holes, shaft dimensions, thread profile, electrical voltage, and hydraulic connections.
A part that does not fit can cause installation delays. It may also damage nearby components. Provide drawings, photos, old part numbers, and nameplate data before requesting a quotation.
Important values include working pressure, maximum pressure, flow rate, torque, rotation speed, air volume, mud flow, and operating temperature.
For example, a hydraulic hose should have a working pressure above the system pressure. A common safety practice is to select a hose with a rated working pressure at least 1.25 times the normal operating pressure, subject to the equipment manufacturer's instructions.
Forged parts usually resist impact better than simple cast parts in demanding applications. Heat-treated alloy steel can improve wear resistance in drill rods and gears.
Ask for material certificates, hardness results, heat-treatment records, and non-destructive testing reports. Magnetic particle testing can find surface cracks in suitable steel parts. Ultrasonic testing can detect internal defects in many forged components.
Original equipment manufacturer parts may cost more, but they often provide known dimensions and documented performance. Aftermarket parts can reduce the purchase price when the supplier controls design and quality.
When comparing a supplier such as Taiye, ask for a clear drawing, inspection plan, warranty period, spare part availability, and response time for technical questions.
| Option | Price Level | Advantages | Risks | Best Use |
|---|---|---|---|---|
| Original new part | 100 percent reference price | Known fit and documented specifications | Higher price and possible long lead time | Critical systems and machines under warranty |
| New aftermarket part | 60 to 90 percent of original price | Lower cost and more supplier choices | Quality varies by manufacturer | Planned maintenance and cost control |
| Remanufactured part | 40 to 75 percent of original price | Lower cost and reduced material waste | Core condition and repair quality matter | Pumps, motors, and gearboxes |
| Used part | 20 to 60 percent of original price | Fast availability in some markets | Unknown fatigue, wear, and service history | Temporary repairs or older rigs |
A 1,000 USD pump that lasts 500 operating hours costs 2 USD per hour before labor. A 1,600 USD pump that lasts 1,200 hours costs about 1.33 USD per hour. The second pump has a higher purchase price but a lower operating cost.
Compare total cost of ownership, not only the invoice price. Include expected service life, installation labor, freight, energy use, repair frequency, and production losses.
| Part Type | Required Data |
|---|---|
| Hydraulic pump | Displacement in cubic centimeters per revolution, pressure in bar, speed in revolutions per minute, shaft type, and rotation direction |
| Rotary head | Maximum torque in kilonewton meters, rotation speed, center opening, mounting pattern, and gearbox ratio |
| Drill rod | Outside diameter, wall thickness, length, thread type, steel grade, and heat-treatment requirement |
| Drill bit | Bit diameter, connection, button diameter, number of buttons, air hole layout, and rock type |
| Mud pump | Flow in liters per minute, pressure in bar, liner diameter, stroke length, and motor power |
| Track assembly | Track width, pitch, shoe count, roller spacing, sprocket diameter, and load rating |
A professional inspection plan should match the risk of the part. Small seals may only need size and material checks. A rotary head or hydraulic pump needs a wider test plan.
Ask the supplier which standards apply to the part. ISO 9001 can show that a company operates a quality management system, but it does not prove that every part is suitable for a specific rig.
For steel parts, request a material certificate and heat-treatment record. For pressure parts, request a pressure test report. For weldments, ask for weld procedure records and non-destructive testing results when required.
Keep the purchase order, approved drawing, inspection report, packing list, and serial number together. These records make future replacement orders faster.
Use the following process to reduce mistakes and control the final cost.
Identify the part
Then confirm the technical data
Then compare at least three complete quotations
Then review quality documents
Then approve the drawing or sample
Then place the order
Then inspect the goods before shipment
Then install and record performance
Machine data collection -> Part identification -> Technical confirmation -> Quotation comparison -> Drawing approval -> Production -> Factory inspection -> Shipment -> Installation test -> Service record
The delivered cost may be 10 to 35 percent higher than the factory price for small international orders. The exact amount depends on destination, weight, volume, customs rules, insurance, and transport mode.
| Cost Item | How It Affects the Budget |
|---|---|
| Packaging | Wooden cases and moisture protection add cost but reduce transport damage. |
| Freight | Heavy parts may be cheaper by sea but slower than air freight. |
| Import duty | The rate depends on the product classification and destination. |
| Insurance | Protects high-value parts during transportation. |
| Installation labor | Large pumps, gearboxes, and rotary heads may require lifting equipment and trained workers. |
| Downtime | Lost production can exceed the part price when delivery is late. |
| Commissioning | Pressure, alignment, vibration, and leakage checks may require specialist support. |
Assume a hydraulic pump costs 4,500 USD. Packing is 150 USD, sea freight is 700 USD, insurance is 60 USD, and local charges are 240 USD. The subtotal is 5,650 USD before import duty and tax. This example shows why buyers should compare delivered quotations instead of unit prices alone.
Record the installation date, operating hours, drilling meters, failure mode, and replacement cost for each part. After six to twelve months, this data can show which parts create the highest cost per operating hour.
For example, replace a filter based on pressure drop or operating hours instead of waiting for a complete blockage. Replace drill rods after measuring thread wear, bending, and wall loss. Use the equipment manual as the final maintenance reference.
Technical experience matters when a standard part does not fit an older or modified rig. Ask the supplier about drawing control, sample development, testing equipment, and previous projects.
For a custom project, set measurable acceptance targets. These may include a first sample within 30 days, a pressure test at the specified value for 20 minutes, a dimensional inspection of 100 percent of critical surfaces, and a field trial of at least 100 operating hours before larger production.
Check pump displacement, pressure, flow, relief valve settings, hose size, fitting type, oil cleanliness, and motor speed. Hydraulic oil contamination can shorten the life of pumps and valves. Use the cleanliness level required by the equipment manufacturer.
Check rod length, outside diameter, wall thickness, thread profile, connection strength, straightness, and heat treatment. A damaged thread can cause poor torque transfer and difficult rod removal.
Check maximum torque, continuous torque, speed range, shaft alignment, gear ratio, lubrication type, bearing condition, and mounting dimensions. Measure vibration and oil temperature during commissioning.
For mud pumps, confirm flow, pressure, liner size, valve type, piston size, and stroke rate. For air compressors, confirm air volume, working pressure, motor power, cooling method, and receiver size.
Check track pitch, shoe width, roller spacing, sprocket profile, idler size, frame length, and load rating. Incorrect track dimensions can cause fast wear and unstable movement.
Drilling Rig Parts range from low-cost seals and filters to high-value rotary heads, pumps, compressors, and crawler assemblies. A realistic budget must include technical specifications, quality inspection, freight, tax, installation, warranty, and downtime.
The safest purchasing method is simple: identify the exact part, confirm compatibility, compare complete quotations, inspect the product, and record its service performance. With accurate machine data and a clear inspection plan, buyers can select reliable Drilling Rig Parts and reduce total operating cost.
A: The cost of drilling rig parts is influenced by machine compatibility, part size and performance, material and manufacturing process, brand, order quantity, shipping and import costs, as well as warranty and after-sales service.
A: To ensure compatibility, record the drilling rig brand, model, year, and serial number. Measure relevant dimensions and performance requirements, and send this information to the supplier to confirm before placing an order.
A: Common drilling rig parts typically range in price from 20 USD for seals to over 80,000 USD for complete rotary heads. Specific components like hydraulic pumps or mud pumps can vary significantly based on specifications.
A: A complete quotation request should include the exact part name and number, compatible rig model, technical specifications, unit and total prices, minimum order quantity, lead time, shipping terms, warranty period, and inspection methods.
A: Buying aftermarket drilling rig parts can be cost-effective, typically costing 60 to 90 percent of the original price. They offer more supplier choices but it's important to ensure the quality varies by manufacturer.
